Dustbin mould

Taizhou trash can mould / dustbin mold / waste bin molds supplier

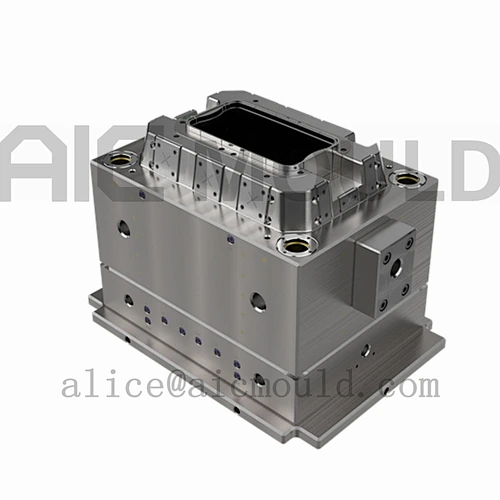

Dustbin series molds

Dustbin series molds(including plastic trash can mold, small dustbin mold, large waste bin mold, environmental trash can mold, garbage basket mold, household waste can mold, outdoor dustbin mold, indoor trash can mold, plastic sanitation garbage Bin mold, mobile garbage box mold, garbage basket mold, garbage basket mold, 120L dusbtin mold, 240L trash can mold, 360L trash can mold, hand push trash can mold, automatic induction trash can mold, 360 induction trash can mold, Plastic oil drum molds, plastic drum molds, etc.) Commonly used mold steels are: 45#, 40Cr, P20, 2738, 2316, 718, NAK80, S136 and so on. The trash can mold is generally used by Shanghai Baosteel P20, 45#. (Shanghai Baogang P20, 45# through our company's mold making process, not only can improve the life of the mold, but also increase the surface gloss of the product molded by the mold, without flash/burr.)

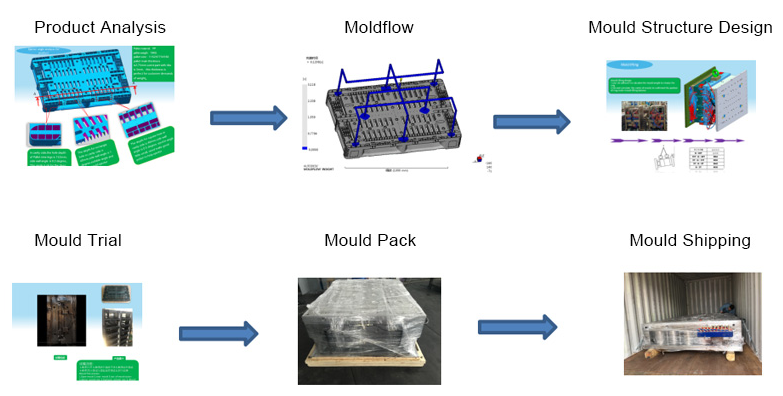

Dustbin mold design

Good mold structure design is the premise of a qualified mold manufacturing, the company's technical department has more than 5 professional mold structure designers and product stylists, have more than 5 years of work experience, can be on the mold Structural and product structure analysis (including: mold release slope, product surface microcosm, casting system design, exhaust system design, cooling system design, etc.) These dustbin molds are the most important and most problematic The mold structure was designed and tested repeatedly.

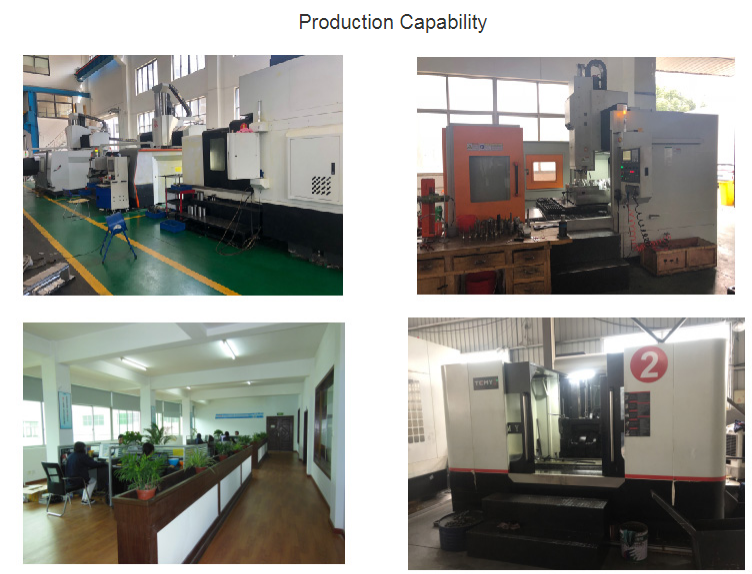

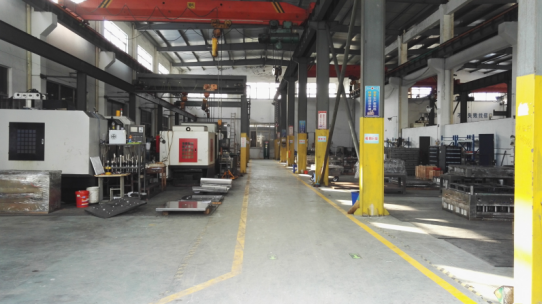

Company equipment

AIC mold company has a full set of processing equipment, 8 sets of carved (one of which is inclined), 5 drilling machines, a surface grinder can reach 0.02mm, a milling machine.

Design of the dustbin mold cooling system

The dustbin mould design of the cooling system is a relatively complicated work, that is, the cooling effect and the uniformity of the cooling should be considered, and the influence of the cooling system on the overall structure of the mold should be considered. The specific position and size of the cooling system Determination; key parts such as cooling of moving molds or inserts; cooling of side slides and side cores; design of cooling elements and selection of cooling standard components. Our company began to analyze these series of problems during mold design. The mold uses circulating water to flow in every part of the mold, reducing the cooling time during injection molding, improving the production efficiency of the product and greatly reducing the production cost.

AIC dustbin mold technical requirements

The dustbin mould technical requirements as follows: 1. Analyze the dustbin product forming process, mold structure and manufacturing process. Guarantee dustbin mold life up to 1 million times or more. 2. It is necessary to design a complete dustbin mold structure and machined parts, and to propose assembly requirements and injection molding process requirements. 3. Causes defects in the appearance of plastic parts (such as shrinkage, etc.) or mold structure problems (such as parting surface setting, gate setting, mold life cannot be guaranteed). 4. Appearance of the mold: The appearance of the mold must ensure that there are no rust, no bumps, no defects and other module defects. 5. Mold transportation: Mold transportation must be equipped with a locking die, which is sturdy and rust-proof. 6. Mold information: At the same time as the mold delivery, a complete set of mold wearing parts and maintenance reference materials must be provided.

Welcome to contact AIC mould to get quotation for your new dustbin mould projects.
